Attention: Demo version for review and testing can be downloaded here . It does not allow trading and can only be run on one chart.

Active Lines - a powerful professional tool for operations with lines on charts. Active Lines provides a wide range of actions for events when the price crosses lines. For example: notify, open/modify/close a position, place/remove pending orders. With Active Lines you can assign several tasks to one line, for each of which you can set individual trigger conditions, as well as conditions for re-activations and the number of possible activations.

Active Lines helps you easily organize various trading strategies connected with trendlines, support and resistance lines. For example, for trading inside a channel, trading in a triangle, grid of orders, etc.

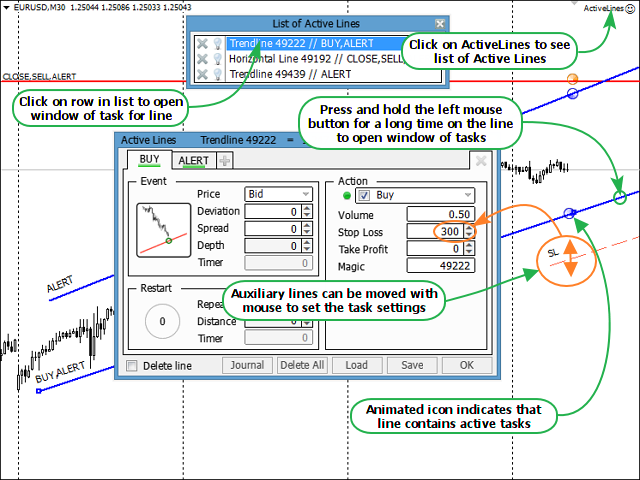

Attaching a task to a line is easy - press the left mouse button on the line and hold it until a window appears, where you can set/modify/check tasks. Line colors and names do not matter for Active Lines.

Features

• The intuitive interface of the program. Two separate windows:
  • The list of all lines with tasks;
  • All tasks for a separate line. Windows can be moved and hidden.
• Can work with 3 types of lines:
  • Horizontal line;
  • Trendline;
  • Fibo retracement.
• 2 types of events: break through and rollback to the line.
• 11 main actions for the task:
  • Alert - a sound alert, a message on the screen, an email, push-notification, switch to the chart on top of all other charts;

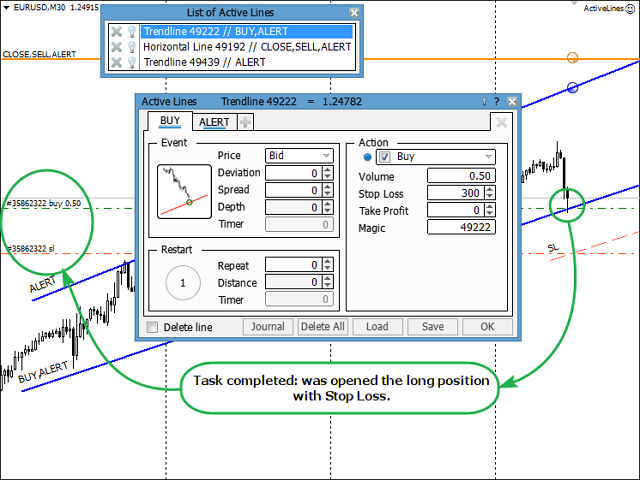

  • Buy, Sell - sending an appropriate market order with specified Stop Loss and Take Profit, as well as a unique identifier to be used in subsequent tasks to modify and/or close positions;
  • Close - closing a position, partial closing, part to close can be specified as a percentage;
  • Modify - modifying Stop Loss and/or Take Profit of an open position;
  • Buy Stop, Buy Limit, Sell Stop, Sell Limit - placing pending orders, a separate identifier can be set to each order to be used when deleting orders;
  • Delete Orders - deleting pending orders;
  • Stop Tasks - canceling tasks on a specific line. This action allows to cancel tasks of a line if another line is crossed.
• Up to 15 tasks for one line. Tasks are executed sequentially, from left to right, as they are located in the tasks window. Tasks can be moved dragged relative to each other to set them in the right order.
• Task re-activation.
• A line can be deleted after all tasks are completed. Available only for horizontal and trend lines.
• Most of parameters in tasks are set by simple drag-n-drop of additional lines which appear when you edit a task.
• Each task has its individual log.
• Line can be set as segments to limit the activity of tasks in time.
• The number of lines with tasks is not limited.
• Lines with active tasks are marked with an animated locator icon.
• "Highlighting" of lines.
• You can save and upload sets of tasks as templates. Templates are saved in files with the ".tsk" extension. The templates can be saved in both the local terminal folder and in the shared folder available to all the terminals on the computer.
• Protection against accidental events - disabling tasks if line is moved close to the price.
• You can limit the volume of an opened position and the number of placed orders in one direction.
• Support of software restart: tasks are not lost during program/terminal restart.
• Interactive help on task parameters.

Input parameters

Language - language of messages and tooltips.
Max Position - maximum position volume the program should open. If 0, the parameter is not managed.
Max Orders - maximum amount of orders the program can place. If 0, the parameter is not managed.
Deviation for Market Order(in point) - allowable price deviation when placing a market order, in points.
Print log in Experts tab - message display mode: true - messages are displayed in the EA and Journal tab of the task, else - messages are displayed only in the Journal tab of the task.
Color of Price Line - pending order line color.
Color of SL Line - stop loss line color.
Color of TP Line - take profit line color.
List of Active Tasks - select the method to display the list of tasks assigned to the line. There are two options: Always visible - constantly display the task list below the line, Only tooltip - tooltip when a line is hovered.
